The monster that tears the night–IMALENT MS06 Little Fatty Start Experience

“The brand IMALENT is a very distinctive brand. From the earliest DD4R and T4A that used flashlights for user-friendly displays, to the M series with tens of thousands of lumens on the shelves recently. Some gaps in the flashlight circle have been eliminated. Now the development of the flashlight circle has reached a bottleneck era, and all aspects of development are stretched, some of which focus on material, some on color, some on playability, and some on brightness…. ….

The IMALENT MS06 that I experienced today is one that pursues brightness. It is not the brightest among the M series multi-battery-driven products, but it is indeed the most portable one at present. Let’s see what it looks like first.

Let’s take a look at the IMALENT MS06 flashlight from three sides.

This article is divided into nine parts to write.

1. Overall overview

2. Packaging and configuration

3. Details

4. Dimensions and weight

5. Temperature rise test

6. Illumination test

7. Waterproof test

8. Extremely bright night shot

9. Summary

1. Overall overview

IMALENT MS06 is a multi-function LED flashlight powered by 3 21700 batteries with multi-speed output. Aerospace-grade aluminum alloy material, CNC machined shell, military three-level hard anodizing treatment, double-sided coating anti-scratch optical lens, 6 brightness levels, button-type dimming, simple operation, suitable for lighting in various occasions . MS06 head diameter: 56mm, barrel diameter: 51mm, length: 119mm, weight: 572g (including battery). MS06 is charged using magnetic attraction. The size of the pop-top can, the precise and compact design, coupled with many intelligent designs such as intelligent temperature control, power monitoring, low-voltage warning reminder, low-power protection, etc., MS06 is more suitable for enthusiasts, and is a must for outdoor adventure, camping, emergency, and emergency rescue. one of the tools.

2. Packaging and configuration

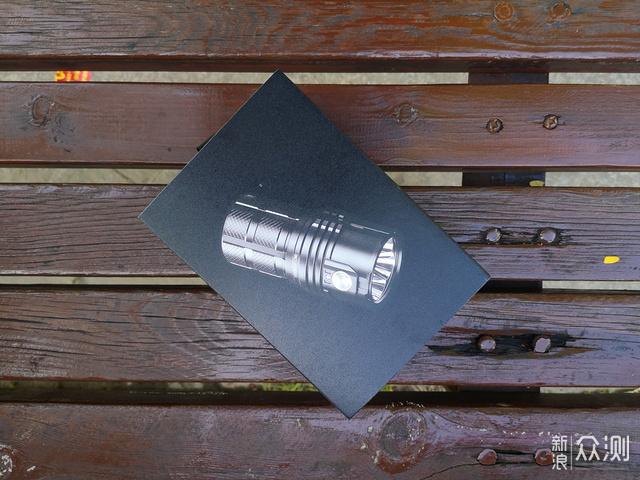

The packaging of IMALENT MS06 is a gift box. The whole is mainly black, the shell is a push-pull cover, and the front is the main picture of MS06. There is a ribbon on the side as a handle, and the details are well considered.

On the back is the English description of the flashlight and several important parameters, as well as the business website, safety and environmental protection certification.

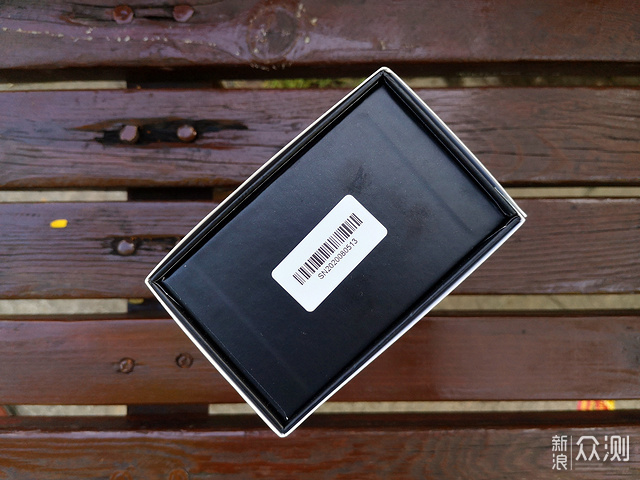

The other side corresponding to the ribbon handle is the serial number of the flashlight, which is the same as the barrel number.

The overall design is fashionable, atmospheric, and tasteful, and it is really thoughtful. The details are also thoughtful. There is a reminder card with black characters on a yellow background on the inside of the lid, and the lining of the box is also made of cardboard and foam plastic, which is simple, environmentally friendly and full of taste. There is an accessory box on the side. The box is opened and closed with magnets attracting each other.

Unpacking, you can see the protagonist of this article, an IMALENT MS06 flashlight, the original 21700, 3 4000mAh lithium batteries, a USB magnetic charging cable, two sealing rings and instructions, as well as a hand rope and a flashlight cover.

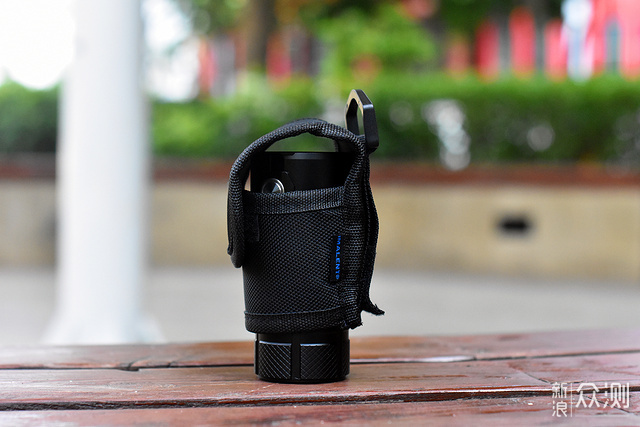

The workmanship of this flashlight cover is really good, the size is suitable and the workmanship is fine. The side of the flashlight cover has the Emmental LOGO, and the back is designed with hanging holes and canvas Velcro for hanging and other wearing methods.

3. Details

When MS06 was first received, there was an English word please remove it before use on the lens, reminding the user to remove the plastic film before using it for the first time. And the edge of the film is marked with red marks, so please give a thumbs up.

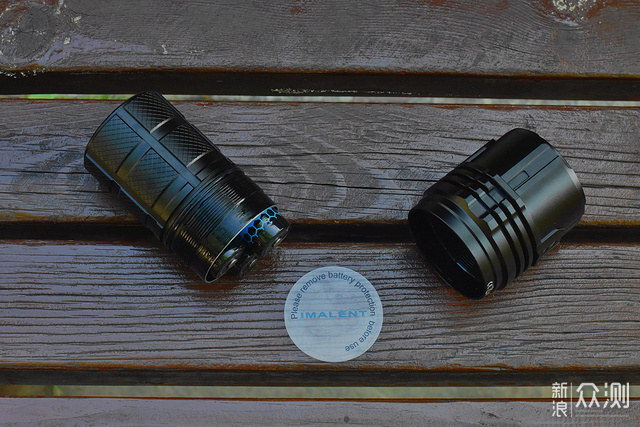

Turning on the flashlight, you can see that the merchant has carefully placed a transparent insulating sheet on the head of the battery. This insulating sheet can better protect the flashlight circuit from being connected to the positive and negative electrodes during transportation. Take it out when you use it, or when you take it apart for the first time. This is the first business I have seen that also put a LOGO on the insulating sheet. Even the details are invested in, give a like.

The simple disassembly of the flashlight is as follows: the barrel head, the barrel body and three 4000mAh 21700 batteries with a protective plate.

The general information of this flashlight is on the plane of the tail cover. Through the figure below, you can clearly see the laser printed logo, product name, model, battery used and maximum luminous flux on the tail plane.

The white cut surface of the middle cylinder is the conductive contact surface of the end surface. The conductive end surface is generally designed with a slightly longer thread, mainly to cope with daily wear and tear. If the flashlight with conductive end face is afraid of being lit by mistake, turn the tail cover of the flashlight half a turn counterclockwise, and the flashlight cannot be lit. However, when using a flashlight with conductive ends, the thread must be tightened.

The connecting thread is very long, and it takes many turns before it can be tightened or removed. There is a section at the front end of the thread without a thread, which is a contact surface reserved for end surface conduction to prevent wear and tear from being long enough.

The three battery compartments are connected in parallel and independent, and one battery can be lit independently, but for the safety of the flashlight and battery, it is not recommended to try. The head of the tail spring is recessed inward, and this design will not hurt the tail of the battery.

The inner wall of the battery compartment is smooth, the space is just right without being crowded, and the workmanship is free of burrs.

In order to ensure safety and normal warranty, please use the rechargeable lithium battery with protective plate configured by Emmy Nect in the battery compartment. When installing the battery, be sure to install it in the correct direction indicated by the positive and negative poles in the figure below.

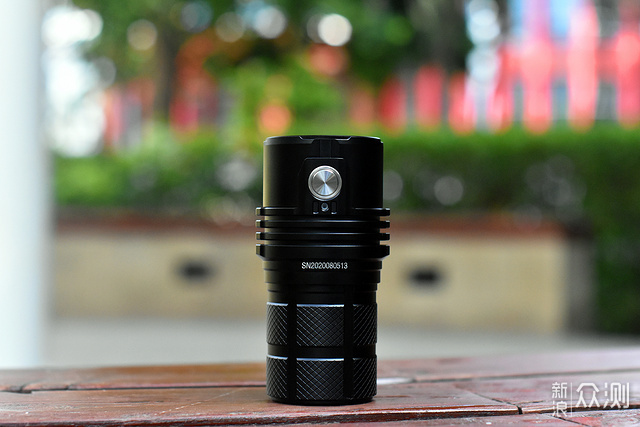

The stainless steel buttons on the head are relatively large, feel good, and operate lightly, crisply, and have a click sound. The white transparent part below the button is the battery indicator. The length of the flashlight is 119mm, and the buttons are just in the thumb holding position, which is ergonomic and does not feel uncomfortable when operating.

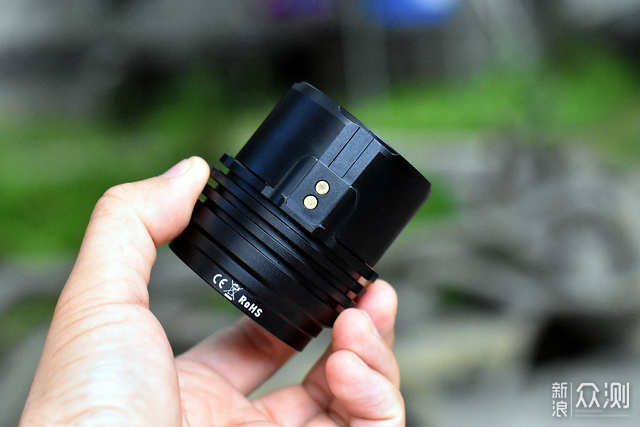

The two copper contact points seen in the picture below are the magnetic charging part, which can be charged by connecting the configured magnetic charging cable to the power supply. No matter it is a standard 220V home power supply, a car charger, a power bank, or a computer USB, it can be charged without turning on any switches, just plug it in and charge it, and it can be charged as you use it. The flashlight cannot be turned on while charging.

There are a total of two hand rope holes on each side of the barrel body on the cooling fins. The design is relatively hidden, and you can’t see it if you don’t pay attention. The heat dissipation fin where the hand rope hole is located belongs to a plane, which can effectively prevent the flashlight from rolling when placed.

The positive contact surface, the edge of the contact surface has been chamfered, and there is no sharp feeling when touched by hand.

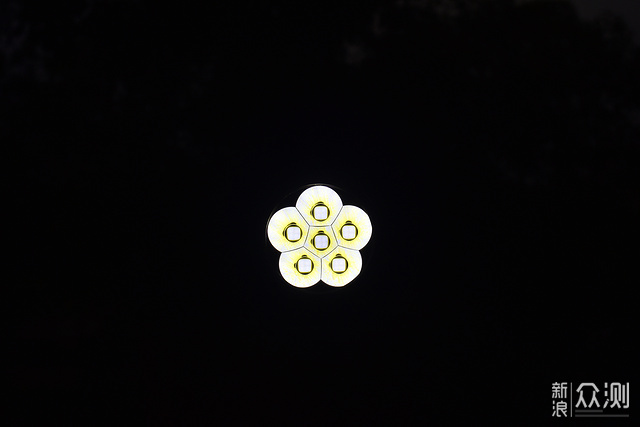

6 CREE XHP70 LEDs, the workmanship is good, the position of the lamp post is centered, and there is no skew or even crooked situation.

The strobe is to look at the screen of another appliance in the screen of one appliance, and the screen of the other appliance will have a bright line moving from the bottom of the screen to the top, and then appearing from the bottom. If this goes on indefinitely, it gives us the feeling that the image is flickering. Some LED lamps may have serious “flicker” problems. Long-term exposure to this environment can cause headaches and eye fatigue, photosensitive epilepsy, vision loss and distraction.

The circuit of this IMALENT MS06 flashlight is well optimized, and there is no strobe in low light.

4. Size and weight

The official size of the IMALENT MS06 flashlight is 119 mm in length, 56 mm in head diameter, 51 mm in tail diameter, and weighs 572 grams (including battery). The actual test is as follows. Due to the differences in the level of each measurer and the accuracy of the equipment used, there may be discrepancies with the official data. All the data in the following pictures are for production testing only.

5. Temperature rise test

The picture below is a simple test of the heat dissipation performance of this IMALENT MS06 flashlight entering 25,000 lumens using a high-temperature fast electronic thermometer. The indoor ambient temperature during the test is 30.2 degrees Celsius, no wind, static, and the test time is 10 minutes. Since the test is affected by the room temperature, the location of the test environment and the level of the tester, there may be errors in the data. The following chart data is for reference only.

6. Illumination test

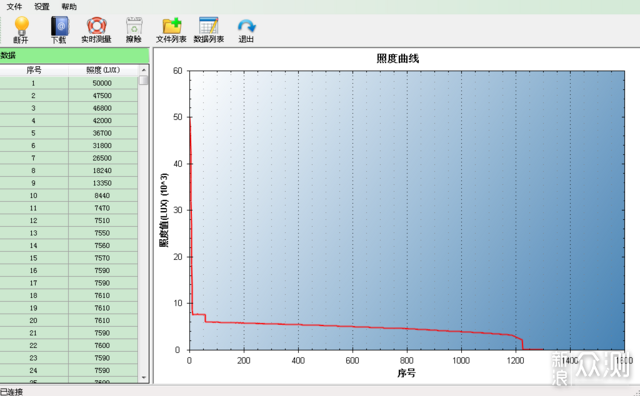

Regarding the illuminance, due to the differences in the level of each measurer, the accuracy of the equipment used, and the differences in time and location, there may be discrepancies with the official data. All the data in the following pictures are for production reference only. The illuminance meter is GM1020 high-precision digital illuminance meter, the vertical distance is 1 meter from the IMALENT MS06 flashlight, and one data is obtained every 6 seconds. The 4000 mAh 21700 battery is used for the test, and the gear is 25000 lumens extremely bright.

As can be seen from the above picture, the flashlight completes a downshift action at about 66 seconds in the serial number 11, and another small downshift in 5 minutes after that. Until 122 minutes, the flashlight automatically shuts down, and the whole process ran for 122 minutes. Due to different regional temperatures, the test environment will be different. This test is similar to the official data of 70 seconds + 120 minutes.

7. Waterproof test

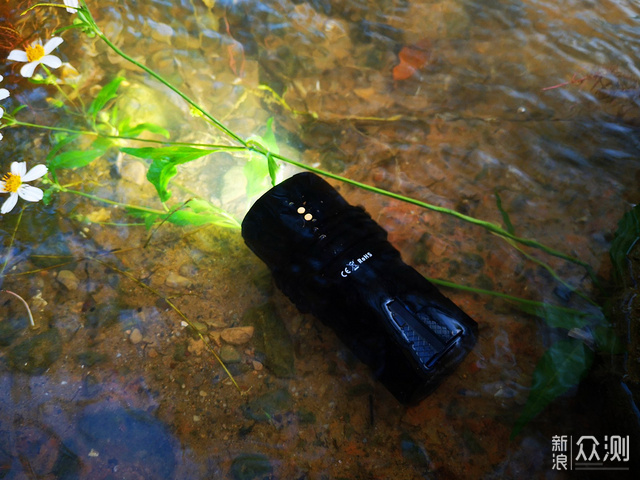

The IMALENT MS06 flashlight introduces waterproof IPX8, the standard is 2 meters underwater. For this flashlight, the key to waterproofing is the sealing of the side button. After the test, each component works normally, and no abnormality is found.

8. Extremely bright night shot

IMALENT MS06 has a maximum luminous flux of 25,000 lumens, supported by three 21700 batteries, and its small size. Many factors are superimposed together. It will result in limited number and time of extremely bright. After all, the super output of 25,000 lumens is not bad to be able to achieve. The goal of pursuing bright and extreme has been achieved, and it can be regarded as the completion of its goal. The following is a night shot picture in extremely bright state.

9. A brief summary

As one of the few high-lumen tubes in the circle, it is already very good to be able to achieve the bright and showy goals pursued by its friends in the limited space of various hardware conditions. The maximum brightness output of 25,000 lumens, as well as the condensed body like a can, intelligent temperature control, power monitoring, low-voltage warning reminder, low-power protection and many other intelligent designs have indeed attracted the favor of some hardcore players. Overall, this MS06 is more suitable for enthusiasts more often, and it is also one of the necessary tools for outdoor adventure, camping, emergency and rescue.
